Automatic Dip-Soldering Machine Features & Specifications Digital Temperature Controller for Solder Bath Electronic Timer for setting dwell (solder) time Easy mechanical adjustments for depth setting Versatile PCB Carrier for fixing multiple PCB's Bath Size 14” x 14” 18” x 14” Solder Capacity 35 Kg 45 Kg Power Supply 220 V AC, 50Hz 220 V AC, 50Hz Heater Power 3.2 KW 4.0 KW Heat up Time 35 35 min Bath Depth 50 50mm Dimensions 690 x 460 x 360mm 790 x 460 x 360 Weight(without solder) 45 Kg 50Kg. Standard Accessories PCB Carrier – 1 no PCB Carrier - 1 no Scrapper 1 no Scrapper 1 no L/N Key Kit-1 no L/N Key Kit - 1 no

Automatic Loose Radial Lead Cutter – ARP 366 by Estovir Technologies The ARP 366 Automatic Loose Radial Lead Cutter by Estovir Technologies is a high-performance machine engineered for capacitor and loose radial component processing. Designed for mass production environments, it automates the trimming of radial component leads with remarkable precision. With an impressive output capacity of 2500–4000 pcs/hr, the ARP 366 boosts productivity while maintaining accuracy and reliability. Built with a sturdy industrial-grade frame, this 145 kg unit is ideal for factory floor integration in large-scale electronics manufacturing. Technical Specfication Model: ARP 366 Component Types: Capacitors, LED & Loose Radial Components Component Body Diameter: 3–15 mm Component Height: 3–18 mm Lead Diameter: Ø0.4 – Ø1.0 mm Output Capacity: 2500–4000 pcs/hr Bowel Feeder Diameter: Ø 380 mm Air Pressure: 30 PSI Power Supply: 220V AC, 50 Hz Dimensions: 830 × 550 × 1100 mm Weight: 145 Kg Components Forming Specification: A (Component Body Diameter): 3–15 mm H (Component Height): 3–18 mm W (Lead Diameter): Ø 0.4 – Ø1.0 mm Key Features of Automatic Loose Radial Lead Cutter – ARP 366 High-Speed Cutting Consistent output of 2500–4000 pcs/hr. Maintains precision without slowing down production. Wide Compatibility Handles body diameters of 3–15 mm and height of 3–18 mm. Supports lead diameters from Ø0.4 – Ø1.0 mm. Precision Mechanism Ensures uniform, damage-free cuts. Optimized for delicate components like capacitors. Heavy-Duty Design Industrial-grade structure for continuous use. Withstands long production cycles without performance drop. Compact & Efficient Integration Small footprint (830 × 550 × 1100 mm) saves space. Easy relocation and setup on existing production lines. Advanced Bowl Feeder System Ø 380 mm feeder bowl ensures stable feeding. Reduces downtime by automating component flow. User-Friendly Operation Equipped with a simple control panel. Quick adjustments with minimal operator training. Applications of Automatic Loose Radial Lead Cutter – ARP 366 Capacitor and loose radial component processing in mass production. PCB and electronics manufacturing lines requiring precise trimming. Consumer electronics component preparation and lead cutting. Industrial electronic assembly units with continuous operations. Automated capacitor packaging and sorting facilities. Automated capacitor packaging facilities Why Choose Automatic Loose Radial Lead Cutter – ARP 366 High-speed cutting with 2500-4000pcs/hrs output. Precise, uniform cuts without component damage. Heavy-duty design for continuous industrial use. Compact footprint for easy production line integration. User-friendly controls for quick setup and operation. Trusted by global electronics manufacturers.

Manual Forming for Taped Axials (Horizontal) – MAP 301 H by Estovir Technologies Estovir Technologies introduces the MAP 301 H—a compact, efficient machine designed for manual forming of taped axial components into a vertical U-shape. The unit is ideal for dense PCB assemblies where horizontal mounting is essential. It is manually operated through a crank, ensuring complete control and precise lead formation. The MAP 301 H is best suited for medium-volume production across electronics, automotive, and assembly industries. Key Features of Manual Forming for Taped Axials (Horizontal) – MAP 301 H High-Speed Output: Delivers an output capacity of up to 18,000 pieces per hour, enabling fast and efficient production. Precision H-Shape Lead Forming: Forms components into a consistent vertical U-shape, ideal for densely populated circuit boards. Manual Crank Operation: Manual operation via crank handle provides enhanced control and accuracy without relying on electricity. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Compact Machine Design: Its compact footprint (250 X 250 X 200 mm) saves space on the production floor. Rugged Industrial Build: Built with durable materials for vibration-free operation and long-term stability in industrial conditions. Quick Changeover Capability: Allows fast pitch and leg length adjustments, significantly reducing downtime during component changeovers. Low Maintenance Requirement: Designed with simplicity in mind, requiring minimal maintenance while maintaining high performance. Why Choose Manual Forming for Taped Axials (Horizontal) – MAP 301 H? The MAP 301 H offers the perfect balance of precision, control, and productivity. Its manual crank operation provides the operator with full control, allowing for fine-tuning and customization during forming. Built with a compact, heavy-duty frame, it supports small-to-mid-scale operations that demand consistency and reliability. Whether you’re handling dense PCBs or varied lead sizes, this machine is engineered to perform. Perfect for small spaces and mobile workstations Eliminates need for electrical setup Ideal for continuous use in industrial environments Easy to operate, adjust, and maintain Designed by Estovir Technologies for long-term value Applications of Manual Forming for Taped Axials (Horizontal) – MAP 301 H MAP 301 H is widely used in manufacturing environments that require Horizontal lead forming: Electronics and PCB manufacturing lines Automotive electronic assembly units Industrial component forming and processing setups Consumer electronics and LED-based systems Component packaging and reshaping facilities Product Type Compatibility: Axial leaded components in taped form Automatic Grade: Manual (non-electric, fully mechanical)

MI Line Motorized Single Side

MI Line Motorized Double side

Conveyor for SMD line 1000mm • EMS 1000 C is a buffer conveyor for SMT line • Rugged structure to ensure the adjustment of rail width parallelism • Antistatic durable belt for PCB transport with alloy aluminum for long life • EMS 1000 C buffer conveyor can communicate with others devices by SMEMA • signal • This Smt conveyor is used in production line of SMT and AI and it is easy to connect with other machine in SMT line like Stencil printer, Pick & Place Machine and Reflow Oven Dimension 1000x734x910 mm (LxW xH) PCB size 50 – 350 mm Conveyor height 900mm ±20mm Guide rail length 1000mm (other size on request) Control system Customized and Reliable Light Optional Communication SMEMA signal Weight 45 Kg

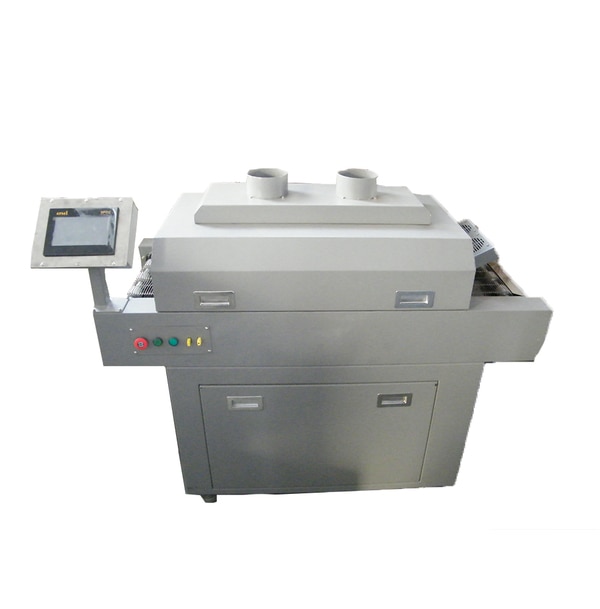

Reflow Oven Conveyorised Heating Zone 3 Upper & 2 bottom Length of Heating Zone 960 mm Heating Type Intelligent convection and rapid infrared heating Cooling zone 1 Max PCB size 280 mm Operation direction Left to Right Transport of PCB Mesh conveyor transmission Speed conveyor 0 – 1500 mm/min Power 3ø 5 line 380 V AC 50Hz Peak Power 4.5 KW Power Operator 2.3KW Initial Heat up time 15 minutes Temperature range Room temperature to 300°C Control Mode PID closed loop Control Accuracy ±1°C PCB temperature deviation ±2°C Dimension 1500x630x470 mm Weight 90 Kg approx

Product Description For solving the purpose of various industrial applications, we are providing to our esteemed customers a large array of Motorised Free Flow Insertion Conveyor. All these conveyors are valued as the ideal assembly line solutions that allow the pallets to move in line in a forward direction and further separated with the help of separators. Highly operational and reliable, our range of Motorised Free Flow Insertion Conveyor is delivered to the clients within stipulated time frames. Features: Enable easy moving Consistent functioning Saves time and labor Further Details: Model CPI 400 Width adjustment to accommodate 25mm to 400mm PCB''s Extended pin chain with plastic rollers for PCB transport Specially designed aluminum profile for jerk free transport Driven by high quality induction motor and reduction gear Speed adjustment by variable frequency drive Detachable Bins for component storage Industrial florescent lighting and instructions display board

Product Details: Brand Estovir Capacity 50 kg/meter Design Standard Our organization offers a variegated range of Modular Plastic Cleated Conveyor. This range is developed using the high-grade raw material, sourced from reliable vendors. These modular plastic cleated conveyor are ideal for agriculture, factories, engineering plant and construction industries. Our clients can avail this range at market leading prices. Features: Wear & tear resistance Durable Anti corrosive nature
