We are the largest manufacture of Lead Free Wave Soldering Machine in Gurgaon.

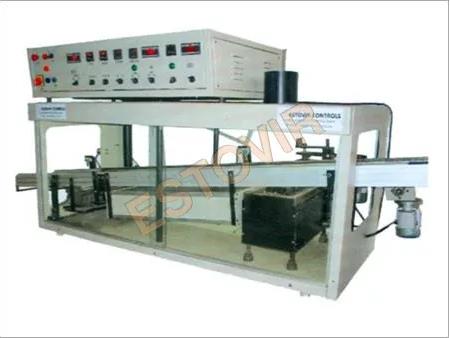

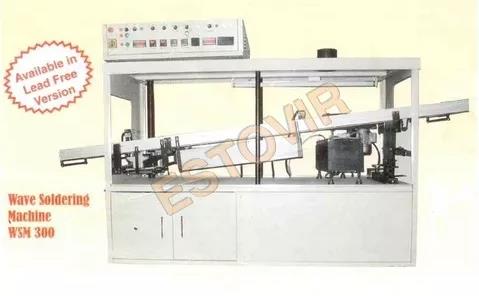

We are specialized in the industry by manufacturing and supplying a wide range of Wave Soldering Machine. These are especially assembled for high mass and volume manufacturing in industry. Offered range of Wave Soldering Machine is developed in compliance with defined international standards of quality and durability. In addition to this, we stringently inspect the entire series on the parameters of service life and functionality. Features: Consumes less floor space Long functional life Convenient operation Technical Specifications: Features Model WSM 200 (Single Wave) WSM 300 S (Single Wave) WSM 300D (Dual Wave) General Power Supply 220V AC, 50 Hz 1 Ph, 20A 440V AC, 50 Hz 3 Ph, 27A 440V AC, 50 Hz 3 Ph, 42A Dimensions(With Vonv. Length) L-2900 W-850 H-1100 mm L-3500 W-900 H-1800 mm L-3500 W-900 H-1800 mm Weight 180 Kg 320 Kg 380 Kg Construction Table Top1 Floor Model Floor Model SOLDER BATH Wave Width 200 mm 300mm 300mm Solder Bath Capacity 95 Kg 115 115 x 2 = 230Kg Max. Wave Height 0-8mm 0-8mm 0-8mm Warm up Time. 60min 70min 70min Solder Bath Power 2.4Kw 3.0 Kw 3.0 x 2=6.0Kw FLUXER Flux Capacity 3 Ltr 4 Ltr 4 Ltr Air Consumption 3.5 cfm(30 PSI) 4.0cfm(30 PSI) 4.0cfm(30 PSI) CONVEYOR Conveyor Speer 0-2.5 M/min 0-2.5 M/min 0-2.5 M/min Conveyor Angle 5,6,7 degree in Steps 4-10 degree step - less 4-10 degree step - less PRE-HEATER Pre Heater Length 800 mm 900 mm 900 mm Pre Heater Power 2.0 KW 3.0 KW 3.0 KW

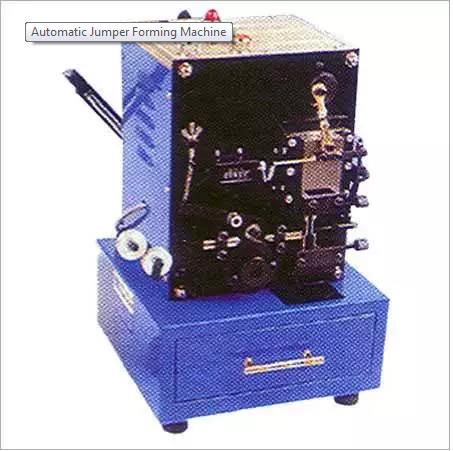

Our respected clients can avail the series of Automatic Jumper Forming Machine that is cautiously assembled by making use of upgraded components and materials. These machines are reliable for producing jumpers used in various electrical applications. Clients appreciate the entire stock of Automatic Jumper Forming Machine due to its reliable usage and easy operations. In addition, we make available the array of machines at discounted prices. Features: Unmatched performance Modular design Easy installation Technical Specifications Output 7500 pcs/hr Power 220V AC, 50Hz Dimensions L-320, W-300, H-450m

• Cutting of any size upto 1200mm V Groove PCB • Cutting Small V-groove PCB low noise durable and safe • All V-Cut and SMT PCB boards can be processed in this machine • Cutting or separating PCBs in this machine can reduce stress on the PCB and prevent solder joints • V Cut is Precision adjustable to control depth of cutter Dimension of Machine 300X270X250mm Power 220V AC 50Hz Cutting 0 – 4000mm/Min. Segmentation Approach Straight Line Component Height Max 30mm Power 220V AC 50Hz Sheet Dimension 2430X375X28mm

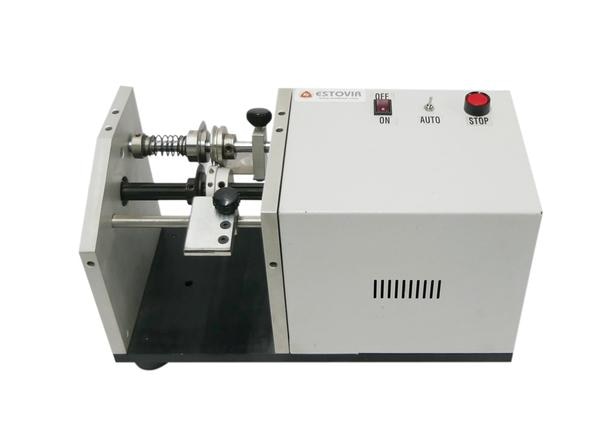

Automatic De-Taping Machine for Taped Radials – UAP 850 R High-Speed, Precise & Reliable De-Taping Solution The Automatic De-Taping Machine for Taped Radials – UAP 850 R by Estovir Technologies is an advanced motorized solution designed for fast and accurate cutting of taped radial components. As the upgraded version of the MAP 860 R, this de-taping machine delivers superior speed, consistency, and efficiency for high-volume electronics and PCB manufacturing. Technical Specification: Model: UAP 850 R Output Capacity: Up to 10,000 pcs/hr Lead Diameter: Ø 0.4 mm – Ø 0.8 mm (soft wire) Power Source: 220V AC, 50 Hz Operation Type: Motorized / Automatic Dimensions: 370 mm × 160 mm × 205 mm Weight: 8 kg Component Forming Specification A (Lead Body Length): 3.5 – 40 mm B (Lead Length): 3.6 – 15 mm W (Lead Wire Diameter): Ø 0.4 – Ø 0.8 mm Key Features of UAP 850 R Automatic De-Taping Machine Motorized Automatic Operation – Minimizes manual intervention for reliable, consistent output. High-Speed Performance – Processes up to 10,000 components per hour, ideal for large-scale manufacturing. Precision Cutting Mechanism – Handles soft wire leads up to 0.8 mm with clean and uniform cuts. Compact & Space-Saving Design – Dimensions: 370 × 160 × 205 mm, perfect for small workspaces. Energy Efficient – Runs on less than 100 W power consumption. Low Maintenance & Long Life – Built with industrial-grade durability for extended use. Applications of the Automatic De-Taping Machine The Automatic De-Taping Machine for Taped Radials – UAP 850 R is versatile and widely used across industries where precision and high-speed output are critical: Electronics manufacturing – De-taping resistors, capacitors, and other radial components. Automotive electronics – Ensures accurate preparation of large-volume components. Consumer electronics assembly – Handles small, delicate taped parts with precision. PCB manufacturing – Streamlines taped component processing. Appliance & device production – Ideal for bulk taped radial leads. Why Choose Estovir Technologies' UAP 850 R? Engineered for Speed & Accuracy – Consistent results with every cycle. Adaptable & Space-Saving – Compact size with adjustable speed control. Reliable & Energy-Efficient – Consumes minimal power while delivering maximum output. Built for Durability – Industrial-grade construction with minimal maintenance requirements. If your production demands speed, precision, and reliability, the Automatic De-Taping Machine for Taped Radials – UAP 850 R is the perfect solution. With its compact size, high output capacity, and low energy usage, this machine significantly improves productivity while maintaining long-term dependability. Upgrade your assembly line with the UAP 850 R from Estovir Technologies – where precision meets productivity.

Automatic Forming for Taped Axials (Horizontal) – UAP 301 H by Estovir Technologies The UAP 301 H (Automatic Forming for Taped Axial Components) by Estovir Technologies is an advanced motorized machine designed for automatic cutting and U-shape forming of taped axial components. Engineered for modern SMT lines, it delivers consistent, high-speed performance with minimal manual intervention, making it ideal for high-volume PCB manufacturing and electronic component processing. Key Features of Automatic Forming for Taped Axials (Horizontal) - UAP 301 H Motorized Automatic Operation:Significantly reduces manual effort while increasing output and consistency. High-Speed Processing: Delivers up to 14,000 components per hour, ideal for mass production environments. Accurate and Repeatable U-Forming: Ensures precise U-shape forming with consistent pitch and lead spacing for horizontal mounting. Supports Lead Diameters Up to 1.37mm: Accommodates various component sizes, making it highly adaptable to different production requirements. Adjustable Speed Control: Fine-tune forming speed to suit varying component types and line speeds. Compact & Rugged Design: Industrial-grade build with a compact footprint (500 × 195 × 195 mm), saving valuable floor space. Low Power Consumption: Runs on 220V AC, 50Hz with minimal power usage (3A–5A) for round-the-clock operation. Low Maintenance: Designed for 24/7 industrial use with simple maintenance routines. Technical Specifications Model: UAP 301 H Operation Type: Motorized Forming Type: Horizontal U-Shape Bend Lead Diameter: 0.4 mm to 1.37 mm (soft wire) Component Power: 3A & 5A Diode Output Capacity: 14000 pcs/hr Speed Control: Adjustable Power Supply: 220V AC, 50 Hz Power Consumption: 3A – 5A Dimensions: 500 X 195 X 195 mm Weight: 20 kg

Automatic Forming for Taped Axials (Vertical) – UAP 301 V The UAP 301 V by Estovir Technologies is an advanced motorized machine designed for automatic cutting and V-shape forming of taped axial components. Engineered for modern SMT lines, it delivers consistent, high-speed performance with minimal manual intervention, making it ideal for high-volume PCB manufacturing and electronic component processing. Key Features of Automatic Forming for Taped Axials (Vertical) – UAP 301 V • Motorized Automatic Operation Significantly reduces manual effort while increasing output and consistency. • High-Speed Processing Delivers up to 14,000 components per hour, ideal for mass production environments. • Accurate and Repeatable V-Forming Ensures precise bending with consistent pitch and lead spacing for vertical mounting. • Supports Lead Diameters Up to 1.37mm Accommodates various component sizes, making it highly adaptable to different production requirements. • Adjustable Speed Control Fine-tune forming speed to suit varying component types and line speeds. • Compact & Rugged Design Industrial-grade build with a compact footprint (500 × 195 × 195 mm), saving valuable floor space. • Low Power Consumption Runs on 220V AC, 50Hz with minimal power usage (3A–5A) for round-the-clock operation. • Low Maintenance Designed for 24/7 industrial use with simple maintenance routines. Applications • The UAP 301 V is suitable for various electronics manufacturing applications: • SMT production lines • PCB assembly facilities • Automotive and industrial electronics • Component forming for LED and consumer electronics • Component packaging and lead processing units Product Specifications - Model : UAP 301 V Operation Type : Motorized Forming Type : Vertical V-Shape Bend Lead Cutting Diameter : Ø 0.4 mm – Ø 1.37 mm (Soft Wire) Output Capacity : Up to 14,000 pcs/hr Speed Control : Adjustable Power Supply : 220V AC, 50 Hz Power Consumption : 3A – 5A Machine Dimensions : 500 mm × 195 mm × 195 mm Machine Weight : 20 kg Component Forming Parameters: • A (Lead Length): 4–18 mm • B (Lead Spacing from Body): 2.5–10 mm • C (Body Gap): Minimum 3 mm between component body and bend • D (Component Body Diameter): 1.5–8 mm • W (Lead Wire Diameter): 0.35–1 mm • P (Pitch Between Leads): 2.5–13.5 mm • H (Overall Height): A + B + C Why Choose UAP 301 V? • Designed for effortless high-volume forming • Compact, reliable, and energy-efficient • Trusted by professionals for its durability and accuracy • Backed by Estovir Technologies' proven expertise in lead forming systems

Our ESD PCB Storage Trolley is designed for electronics manufacturing, assembly lines, and R&D laboratories to ensure safe, efficient, and anti-static handling of printed circuit boards (PCBs). Built using high-quality stainless steel (SS) pipes and conductive PCB panels, these trolleys provide exceptional durability, corrosion resistance, and sleek aesthetics. KEY FEATURES • Portable & Expandable – Quick assembly and dismantling for flexible workspaces. • Robust & Durable Build – Corrosion-resistant stainless steel ensures long-term reliability. • High Storage Capacity – Holds up to 300 PCBs in multiple slots. • Anti-Static Protection – Conductive castors and chains minimize ESD risks. • Heat Resistant – Withstands temperatures up to 150°C. • Smooth Mobility – 100mm conductive rubber wheels for effortless movement. • Ergonomic & Sleek Design – Efficient, space-saving, and professional aesthetics Surface Resistance: 10⁴ – 10⁹ Ω Main Material: SS 304 and Conductive PP Plate Ambient Temperature: Max. 60°C Tube Thickness: 0.9mm ± 8C

Our ESD PCB Storage Trolley is designed for electronics manufacturing, assembly lines, and R&D laboratories to ensure safe, efficient, and anti-static handling of printed circuit boards (PCBs). Built using high-quality stainless steel (SS) pipes and conductive PCB panels, these trolleys provide exceptional durability, corrosion resistance, and sleek aesthetics. KEY FEATURES • Portable & Expandable – Quick assembly and dismantling for flexible workspaces. • Robust & Durable Build – Corrosion-resistant stainless steel ensures long-term reliability. • High Storage Capacity – Holds up to 300 PCBs in multiple slots. • Anti-Static Protection – Conductive castors and chains minimize ESD risks. • Heat Resistant – Withstands temperatures up to 150°C. • Smooth Mobility – 100mm conductive rubber wheels for effortless movement. • Ergonomic & Sleek Design – Efficient, space-saving, and professional aesthetics Surface Resistance: 10⁴ – 10⁹ Ω Main Material: SS 304 and Conductive PP Plate Ambient Temperature: Max. 60°C Tube Thickness: 0.9mm ± 8C
